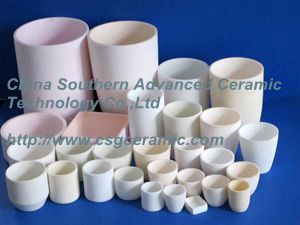

Zirconia Ceramic crucible
Zirconia Ceramic crucible

Item : CSG00192

Details :

Zirconia Crucibles Types & Specification:
1) Cylinder Zirconia Crucibles
2) Conical Zirconia Crucibles



Cylinder Zirconia crucibles

Catalogue
Number
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Mark
CS0915
￠9×15
1.5
2

CS1612
￠16×12
2.5
3

CS1695
￠16×95
2.5
10

CS3280
￠32×80
3.0
40

CS3480
￠34×80
3.0
50

CS3680
￠36×80
3.0
60

CS4050
￠40×50
2.9
50

CS4080
￠40×80
2.9
70

CS4550
￠45×50
2.9
50

CS5080
￠50×80
4.0
100

CS5775
￠57×75
4.0
120

CS6666
￠66×66
3.3
120

CS8080
￠80×80
3.5
300




 Conical Zirconia crucibles

Catalogue
Number
 Diameter
Top（Bottom）×Height (mm×mm)
Wall thickness
(mm)
Approx. Capacity
 (ml)
Mark
CS2722-14
￠27(14) ×22
1.5
5

CS3642-20
￠36 (20) ×42
3.0
60

CS5730-45
￠57(30) ×45
3.0
60

CS5952-45
￠59(45) ×52
2.5
10

CS6250-34
￠62(34) ×50
3.0
80

CS8280-58
￠82(58) ×80
4.2
330

CS85115-70
￠85(70) ×115
4.8
400
